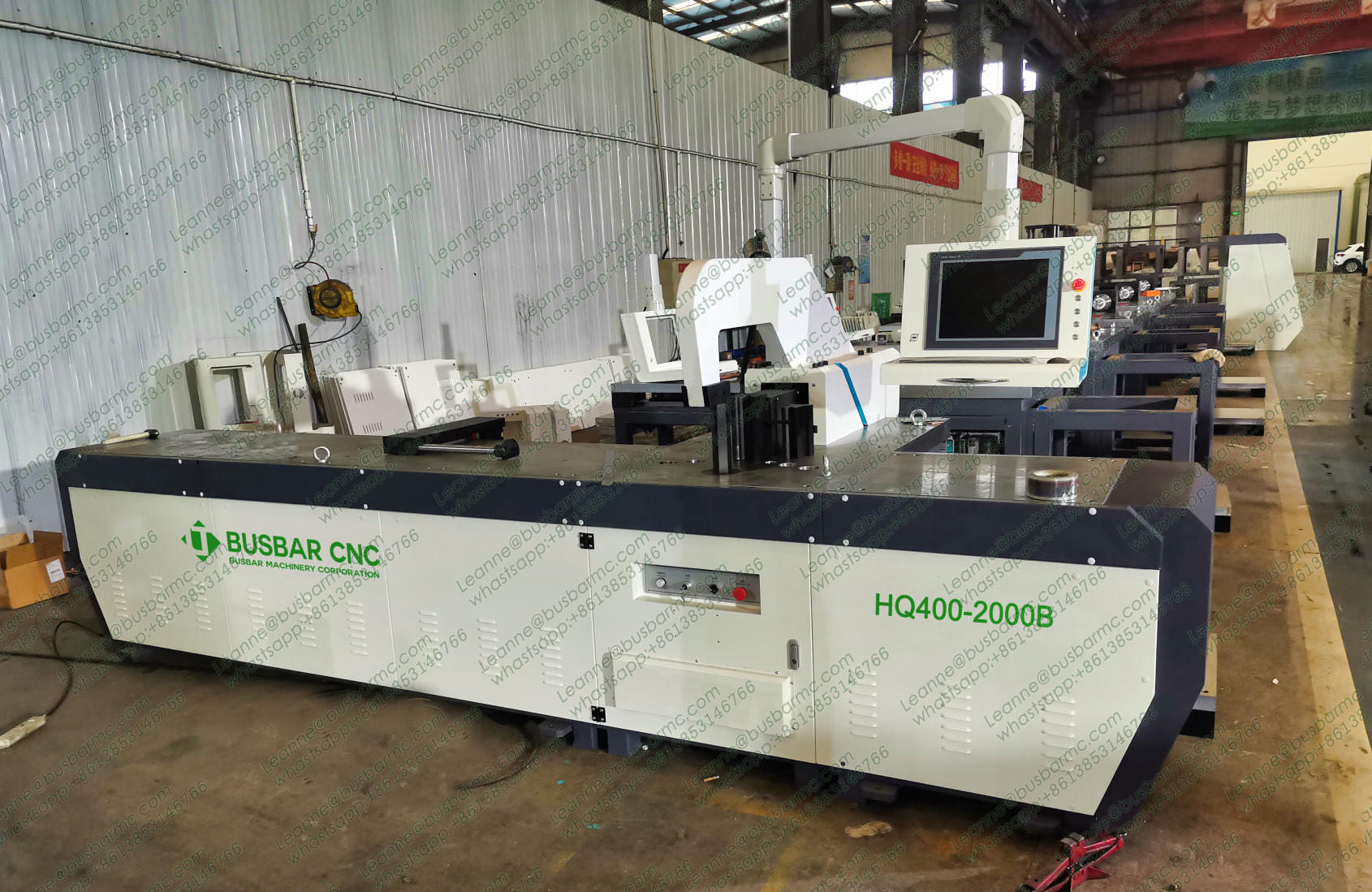

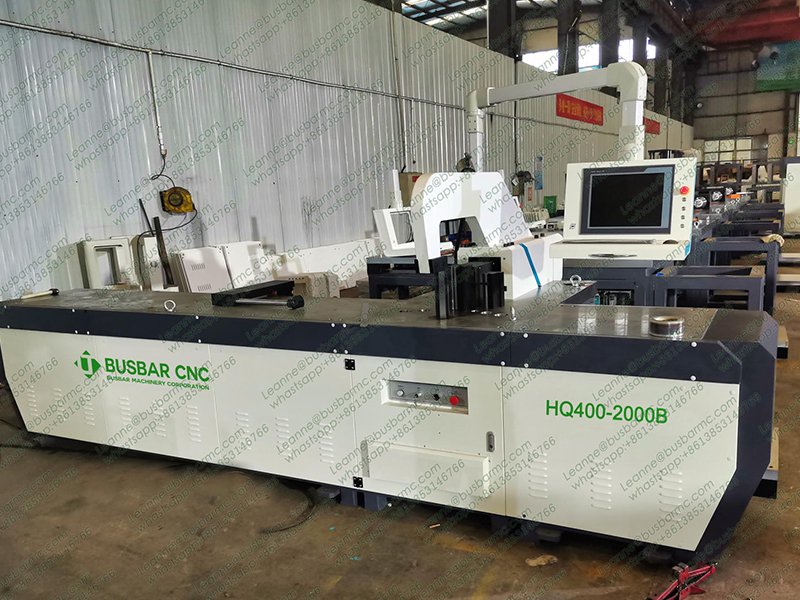

HQ400-2000B CNC Copper Busbar Bending Machine | Heavy-Duty 2000mm Conductor Bender for Turkish Pano (Switchgear) Manufacturing
Description:
The LT HQ400-2000B is a high-performance CNC busbar bender engineered specifically for the demanding requirements of the Turkish electrical infrastructure and power distribution sector. This fully automated system is designed for high-precision bending of both copper and aluminium conductors, accommodating lengths up to 2000mm.
Equipped with an advanced CNC numerical control unit and a state-of-the-art CAD/CAM system, the HQ400-2000B ensures that local Bara İşleme (busbar processing) equipment users can achieve elite-level accuracy and repeatability. This machine is the preferred choice for fabricating custom busbar offsets and complex conductor geometries in compliance with TSE and IEC electrical standards.
The busbar bending process is characterised by its extreme efficiency and high degree of automation, significantly reducing manual labour for local Pano İmalatçıları (switchboard builders). To get a quote on the latest busbar bending machine prices or to request a technical data sheet, contact our Turkey support team today.
LT Busbar Bending & Processing Videos:
Machine Details & Application Information:
HQ400-2000B Technical Specifications (Turkish Industry Standard Units)
| Model | HQ400-2000B |
| Nominal Pressure | 400KN |
| Hydraulic Cylinder Stroke | 250mm |
| Main Motor Power | 5.5kw |
| Gauge Length (Max Working Range) | 2000mm |
| Gauge Accuracy | +/-0.15 |
| Bending Accuracy | +/-0.3° |
| Bending Head (Y Axis) Speed | Fastest 5m/min; low: 1.25m/min |
| Max Moving Speed of Side Striker (X Axis) | 15m/min |
| Y-axis Repeat Positioning Accuracy | +/-0.02 |
| Horizontal Bending Max Size | 15mm x 160mm |
| Vertical Bending Max Size | 12mm x 120mm |
| Y-axis Servo Motor Power | 5.5kw |
| X-axis Servo Motor Power | 0.75kw |
| Total Machine Weight | 3300kg |
| Overall Dimensions | 4300mm x 1450mm x 1850mm |
Advanced Machine Features:

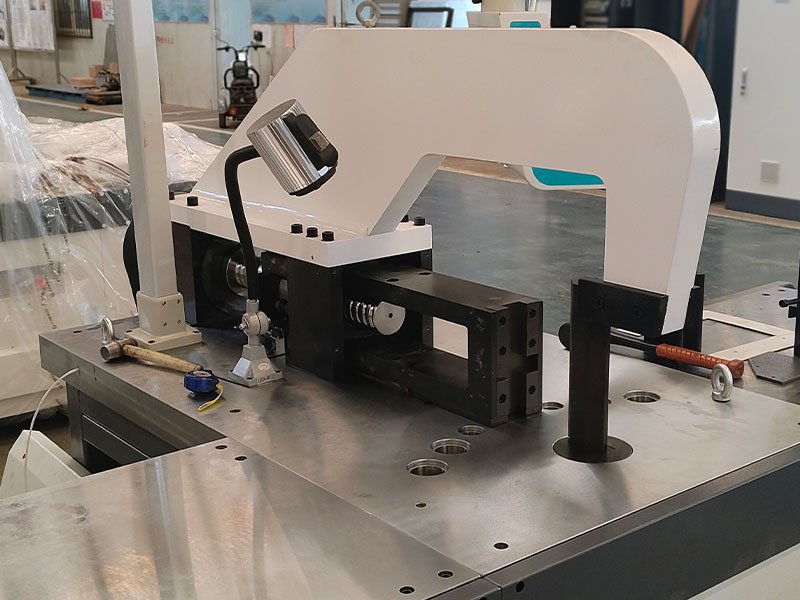

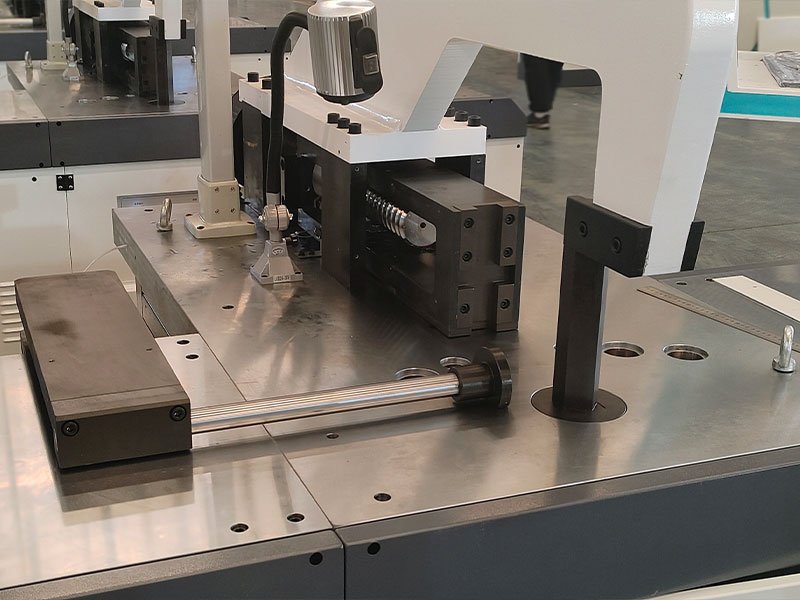

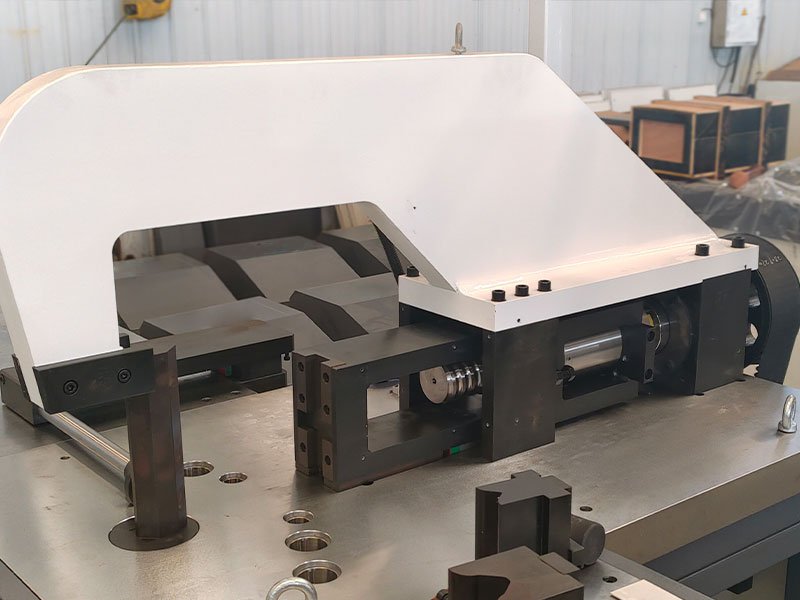

High-Strength Closed Bending Structure: The LT busbar bending machine utilizes a robust closed-frame design. This architecture ensures uniform force distribution and significantly higher mechanical integrity compared to traditional open-style benders, making it the ideal CNC busbar bending solution for heavy-duty industrial use in Turkey.

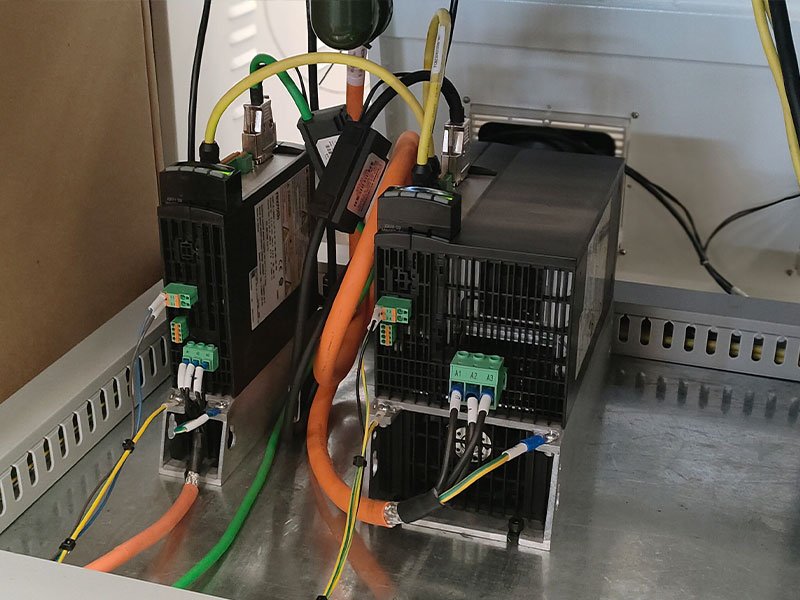

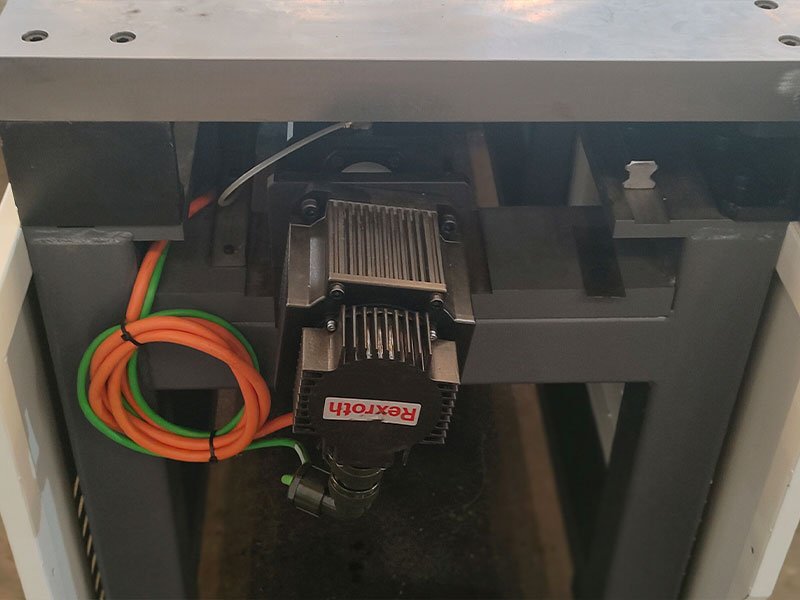

Main Power via High-Precision Servo Motor: The transmission system is incredibly stable with high repeat positioning accuracy. Unlike hydraulic systems, the accuracy is not influenced by temperature fluctuations, providing consistent results in variable Turkish workshop environments.

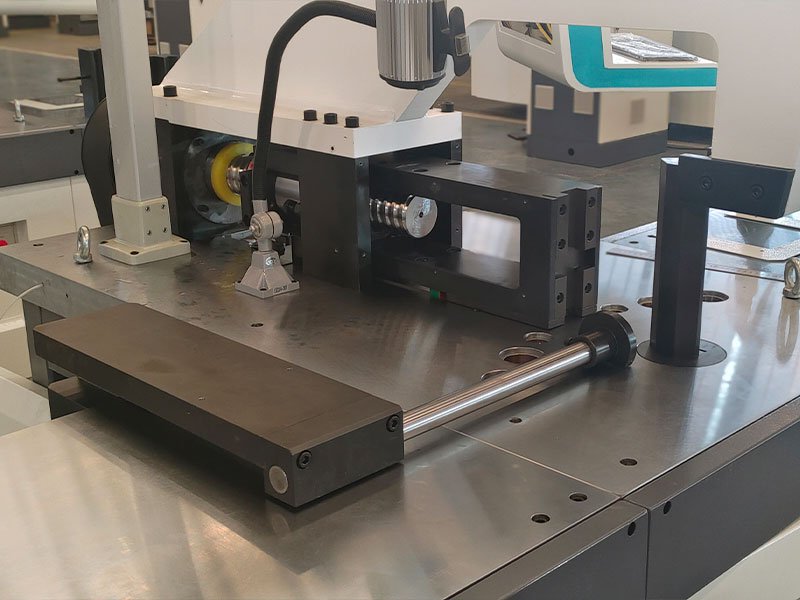

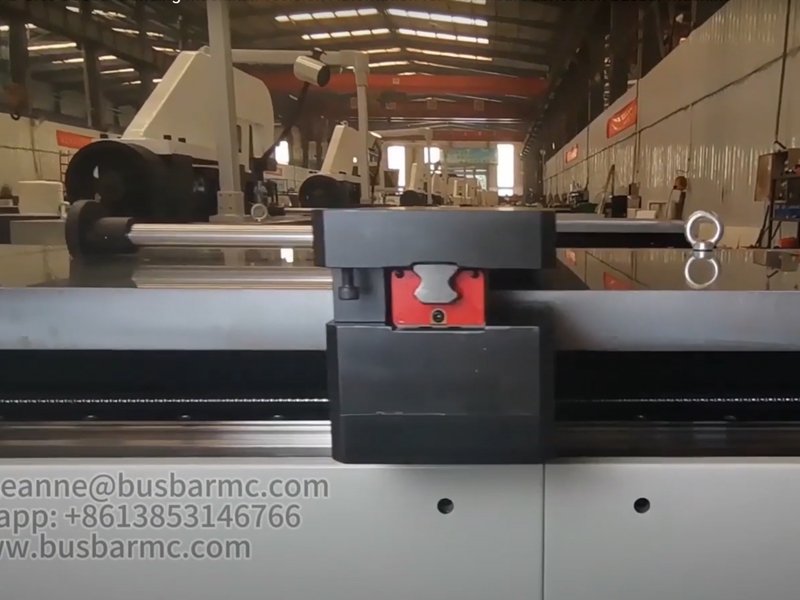

Intelligent CNC Back-Gauge Stopper: Featuring a modular design, the back-gauge length can be customized to suit your specific fabrication needs, ensuring smooth and rapid material positioning for seri üretim (mass production).

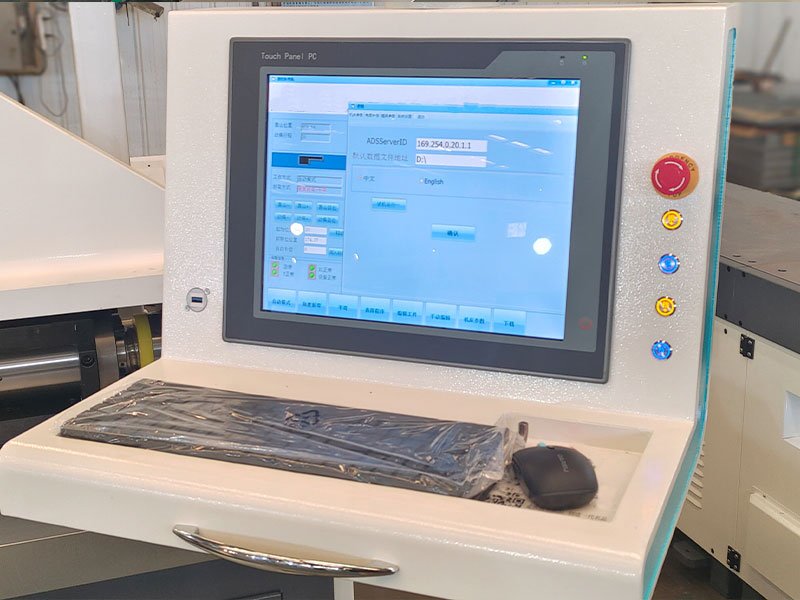

Integrated CNC Control & CAD/CAM Software: The system combines an industrial-grade CNC unit with dedicated CAD/CAM software. This setup is perfect for AG/OG Pano (LV/MV switchgear) manufacturers, Trafo (transformer) plants, and substation equipment fabricators across Turkey.
FAQ – HQ400-2000B CNC Copper Busbar Bending Centre
1. What conductor materials can be processed?
This machine is purpose-built for bending high-conductivity copper and aluminium busbars used in Turkish Elektrik Panosu (electrical panel) applications.
2. What is the maximum bar size this machine can bend?
The unit handles horizontal bending up to 15mm x 160mm and vertical (edge) bending up to 12mm x 120mm.
3. How does the 2000mm gauge benefit my workshop?
The extended 2000mm gauge length allows for the fabrication of longer busbar runs common in industrial distribution boards and Trafo Merkezleri (substations).
4. What is the benefit of the servo motor over hydraulic power?
The servo motor drive provides superior repeat positioning accuracy (+/-0.02mm) and remains stable even during long shifts in Turkish summer conditions.
5. Is the software compatible with standard CAD files?
Yes, the integrated CAD/CAM system allows for seamless programming of complex offsets and multi-bend conductors.
6. Which Turkish industries use this equipment?
It is widely used by Pano İmalatçıları, transformer manufacturers, and power distribution enclosure fabricators in Istanbul, Ankara, and Bursa.
7. How can I receive local technical support?
You can contact our Turkey technical sales team for pricing, installation guides, and ongoing maintenance support for your busbar bending needs.
